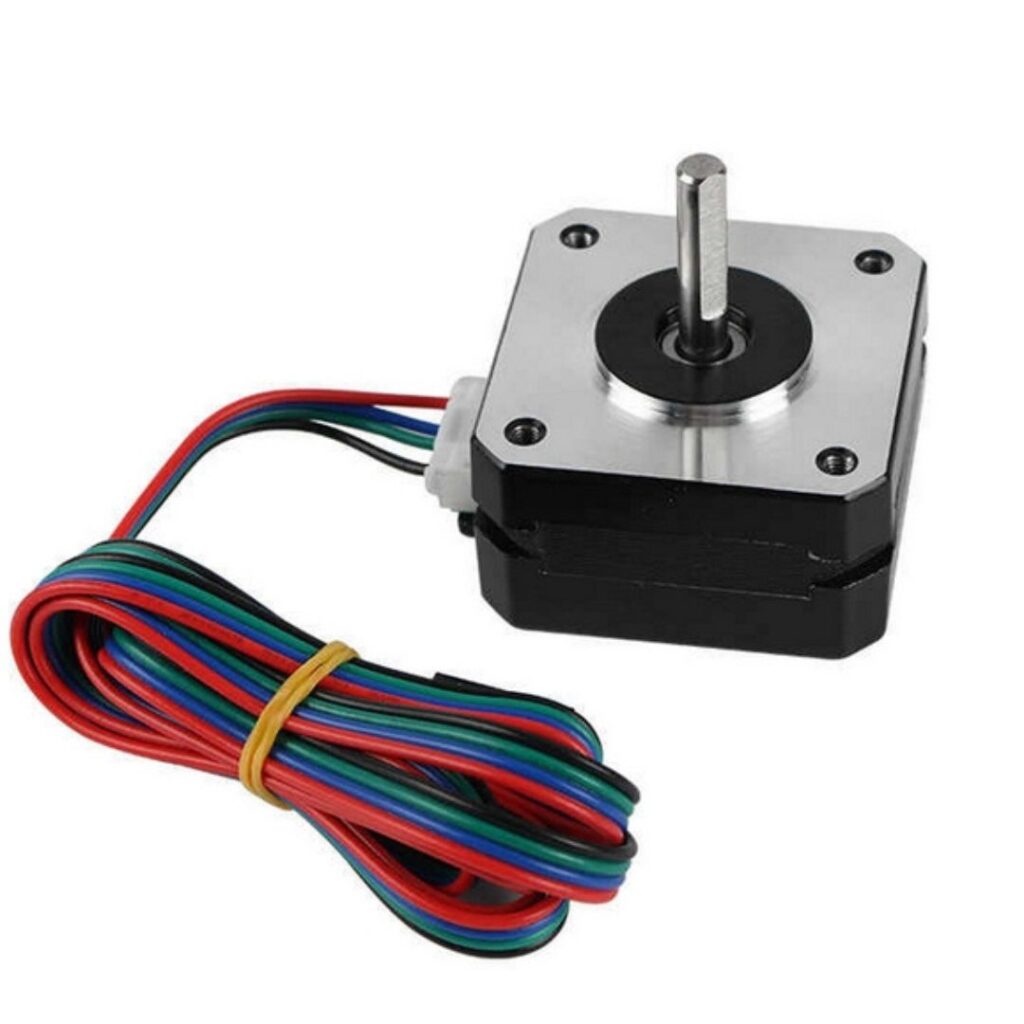

Nema 17 Stepper Motor (42×23mm)

Product description

Reliable and precise NEMA 17 stepper motor – model 17HS4023 is suitable for use in 3D printers, CNC machines, robotic systems, and other applications requiring accurate motion control. It features a 1.8° step angle with high repeatability and a holding torque of 0.13 Nm, ensuring smooth and stable operation under various loads. The motor offers high positioning accuracy and a compact design, allowing easy installation even in limited spaces. Thanks to its small size and reliable performance, it’s ideal for compact 3D printers, CNC machines, robotic arms, and other precision mechanisms where repeatable motion is essential.

Technical specifications:

• Model: 17HS4023
• Dimensions: 42 x 42 x 23mm
• Step Angle: 1.8° +-0.09°
• Rated Voltage: DC 4.1V
• Rated current: 1 A / phase
• Holding Torque: 0.130Nm
• Konektor: XH2.54 6pin
• Weight: 132 g

Note. Cable not included!
